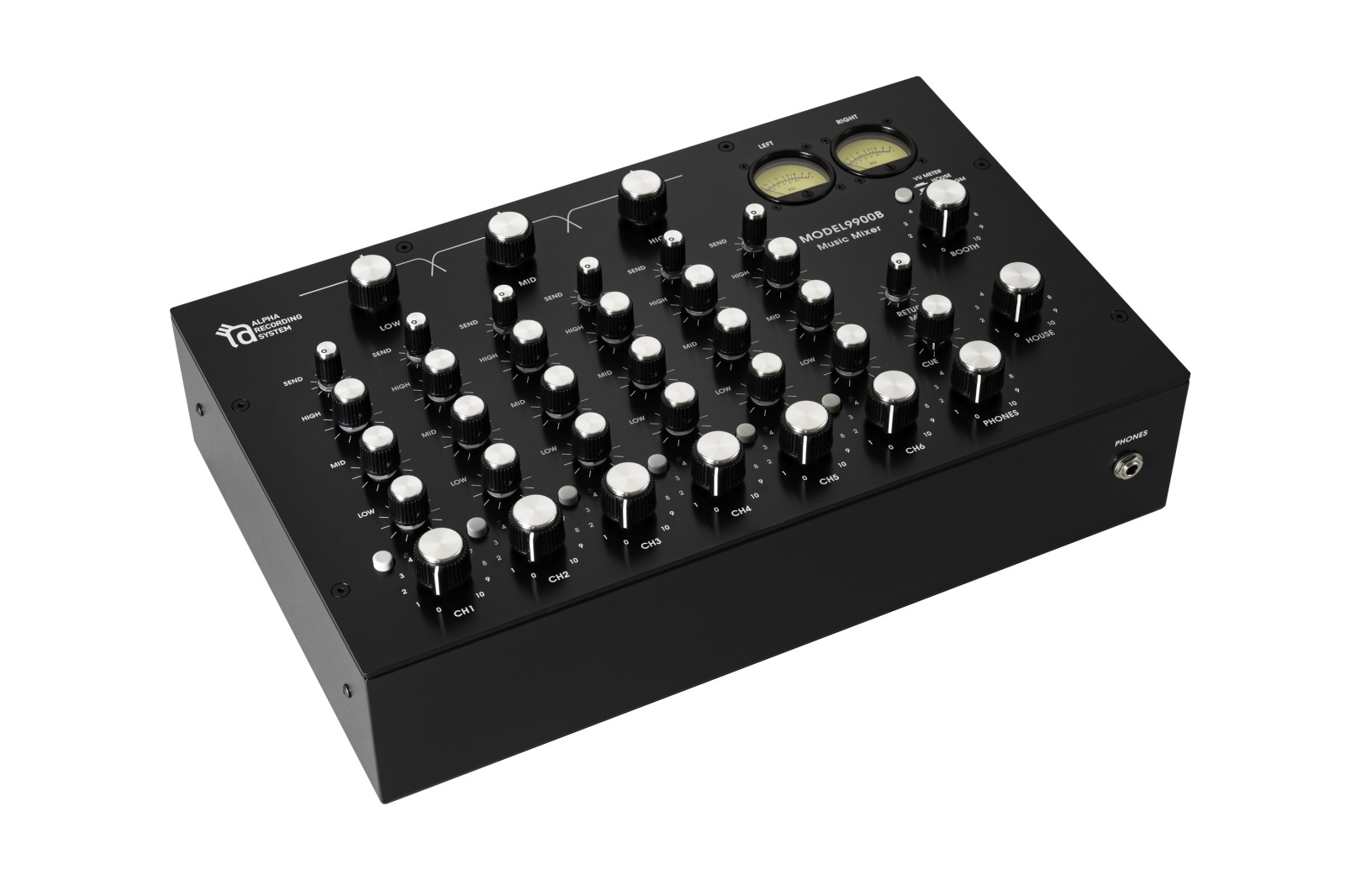

MODEL9900 Pro Music Mixer
ARS MODEL 9900 DJ Mixer is a Japanese made,
6ch. rotary mixer with world's first 3band hybrid isoeq
Hi-eq Mid-eq Low -Iso on each channel.
The ARS 9900 is our flagship table top mixer.

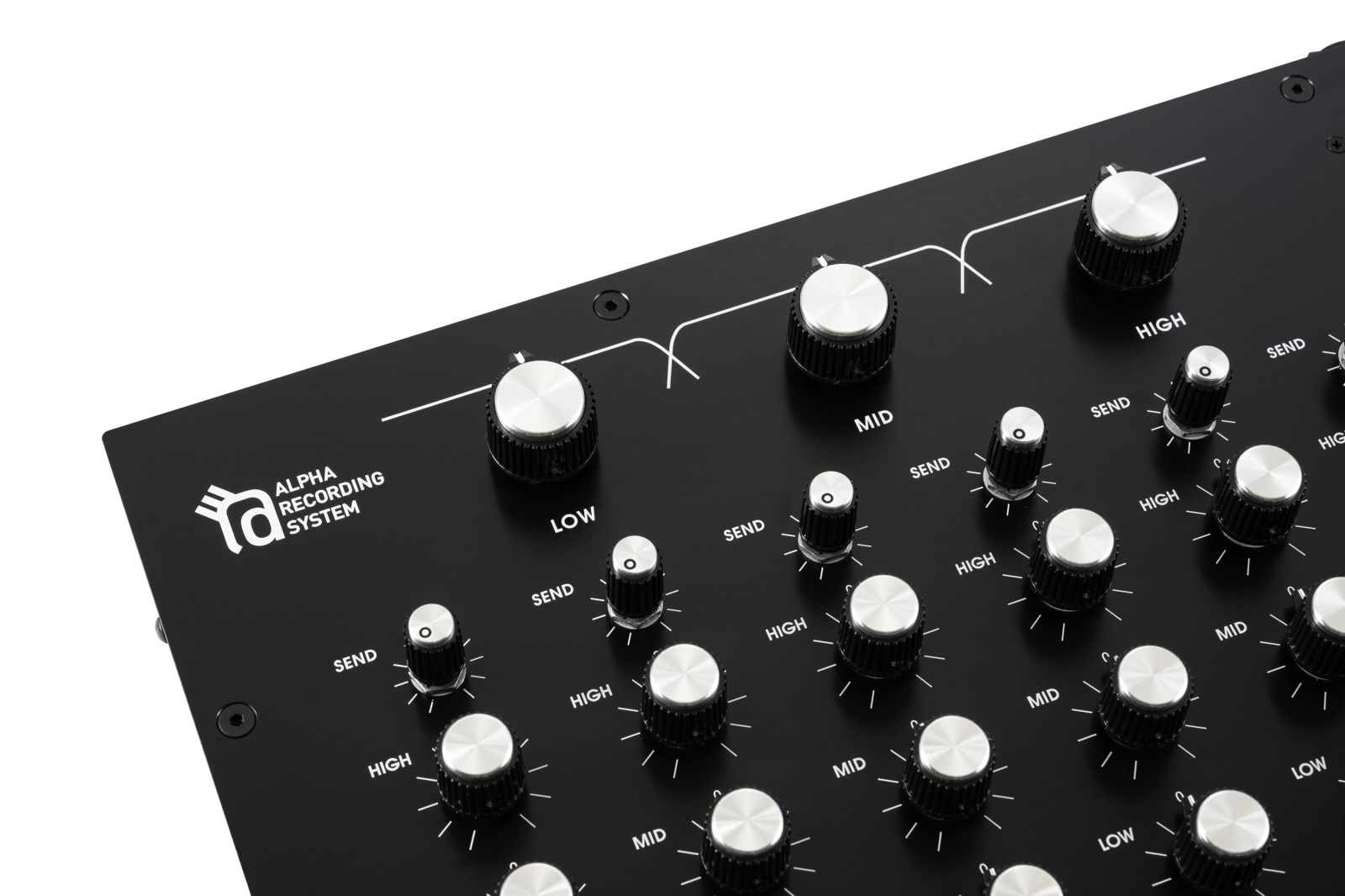

This 6 channel High Quality Rotary DJ Mixer has a 3 band isolator on the master.
Potentiometer and switch is All ALPS .

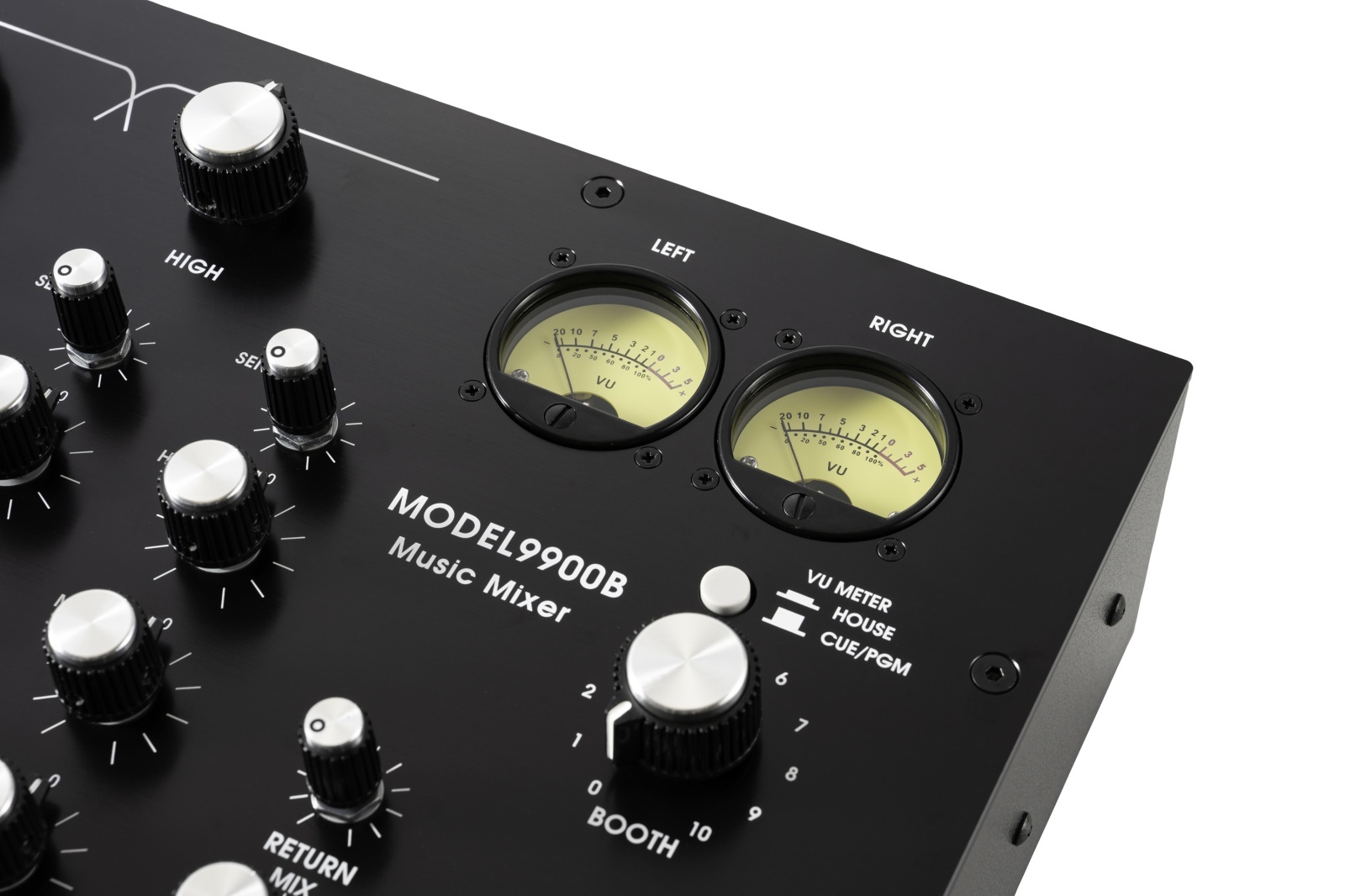

VU meter made by Sifam
Classic knob and Aluminum Machine Component Knob Cap
A long time in the development phase this mixer is a beautiful example of Japanese hand made precision workmanship.
Highly recommended.
It is designed with purist ideals with only essential features.

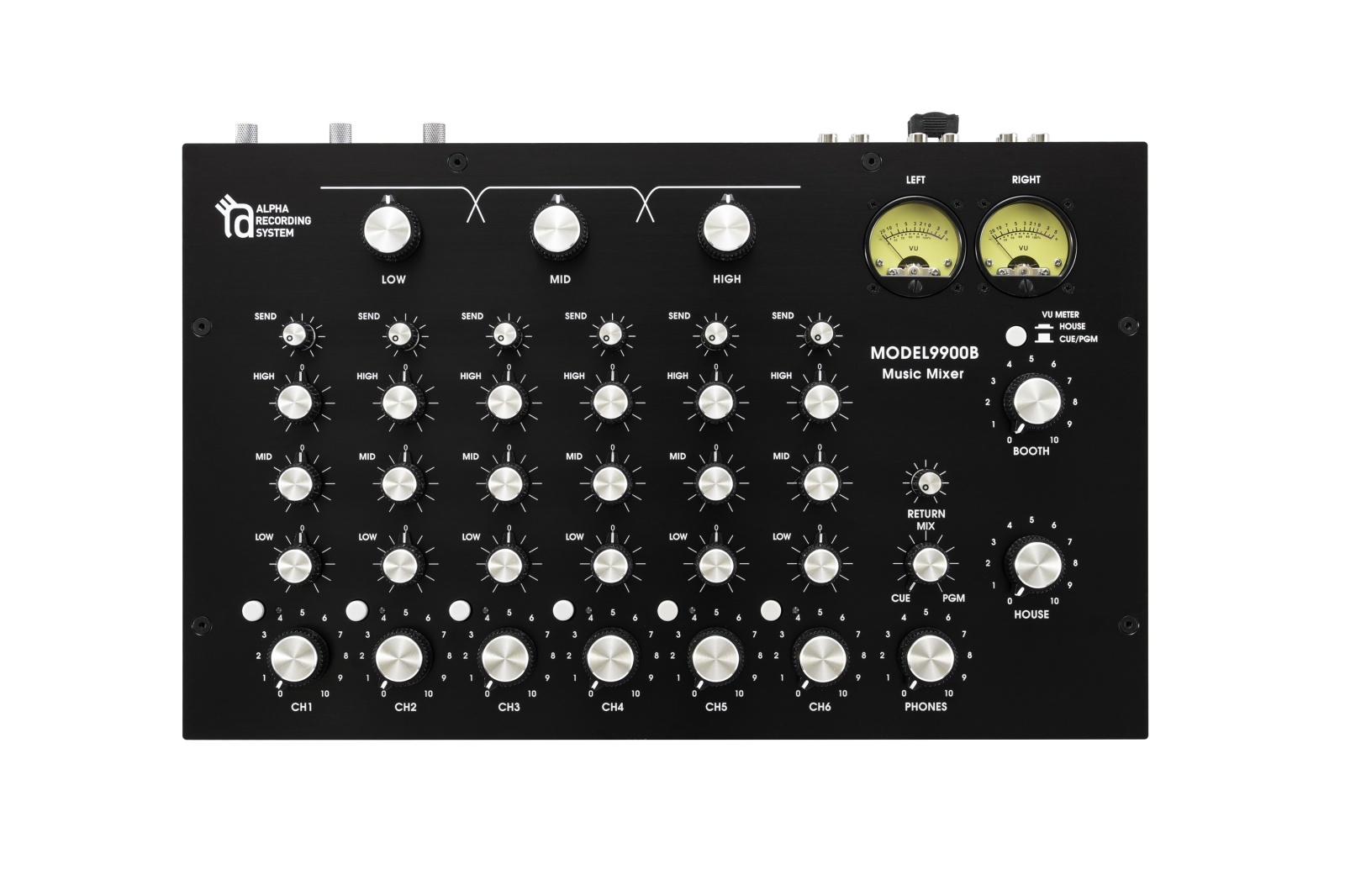

ARS 9900 has 3 band hybrid iso-eq hi-eq mid-eq low-iso on each channel and 3band Iso on the master.
The Master Isolators can be boost of cut from +18db ~ -∞.
The Ch hi-eq mid-eq can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~ -∞.
Each channel has post fader send. also return and effect Loop.
* Due to the Model-9900 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.
* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.
[SPEC]

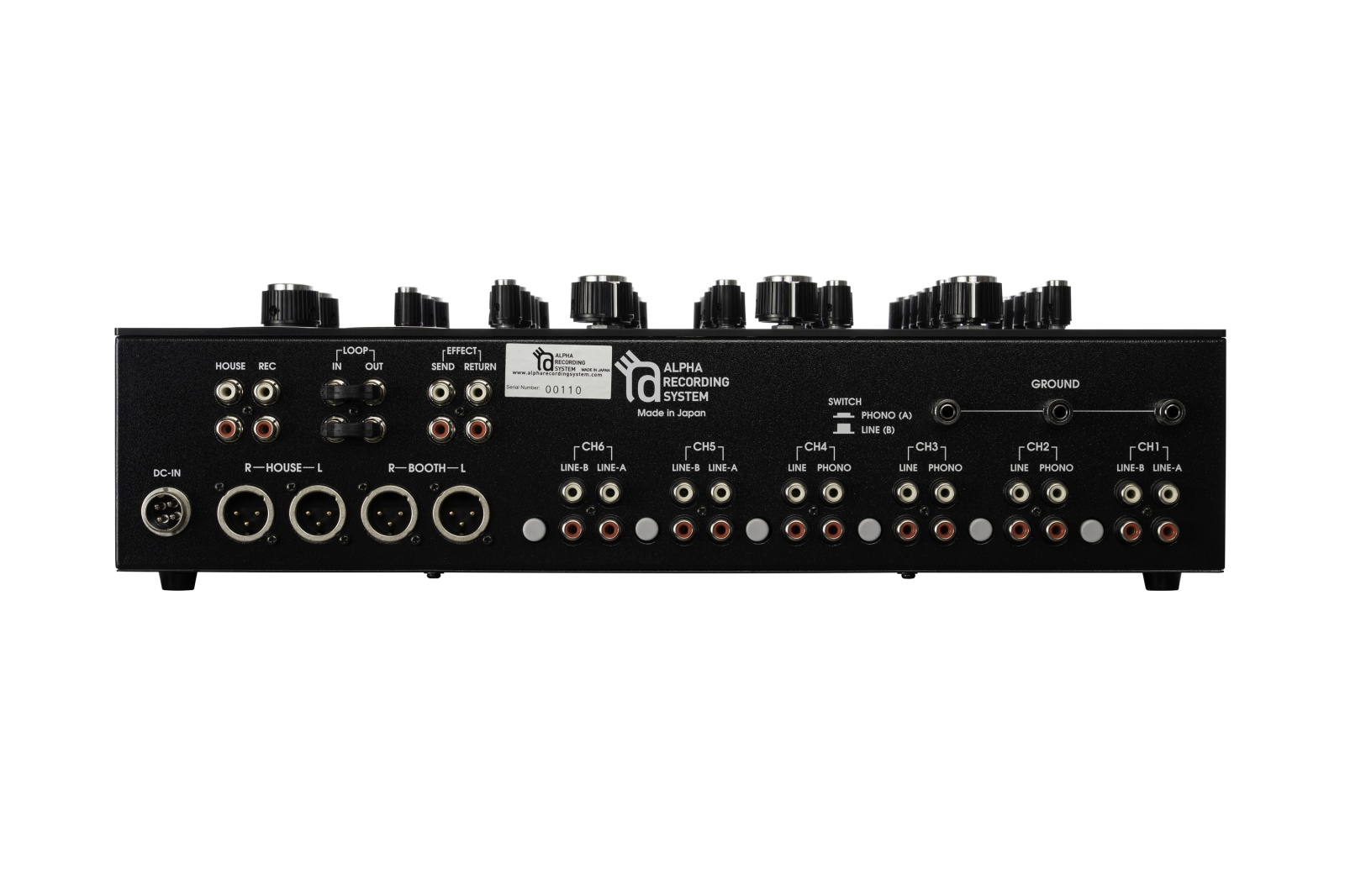

Input
Frequency Response: +-1dB 20Hz-20Khz
Input: 3 x Phono : 47K Ohm / 9 x Line: 20K Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Return: RCA Unbalanced Impedance 20K Ohm
Output
House Output:RCA Unbalanced Impedance 1K Ohm/ XLR Balanced Impedance 100 Ohm
Booth Output:RCA Unbalanced Impedance 1K Ohm/ XLR Balanced Impedance 100 Ohm
Tape Output: RCA Unbalanced Impedance 1K Ohm
Effect Loop :RCA Unbalanced Impedance 600 Ohm
Effect Return:RCA Unbalanced Impedance 600 Ohm
Power Consumption: 30w
Power Requirement: US-115V/EU-230V(Selectable) 50/60Hz
Dimensions: Body (W)420 x (H)260 x (D)90 mm
Front Panel Color: Black
Spec Seat: Manufacturer site
