ARS MODEL 9100BW MUSIC MIXER WOOD TYPE [ARS MODEL 9100BW]

MODEL9100BW Music Mixer

4CHANNEL TABLE TOP MIXER


MODEL9100BW (broadcast mixer) Music Mixer Wood TYPE
( Headphone Monitor Trim: Cue-Mix-Pgm special version)


ARS MODEL 9100BW DJ Mixer is a Japanese made,
4ch. rotary mixer with world's first　3band hybrid isoeq
Hi-eq Mid-eq Low -Iso on each channel.
This 4 channel High Quality Rotary DJ Mixer has a 3 band Isolator on the master.
Potentiometer and Switch are All ALPS .
A long time in the development phase this mixer is a beautiful example of Japanese hand made precision workmanship.
Highly recommended.


It is designed with purist ideals with only essential features.

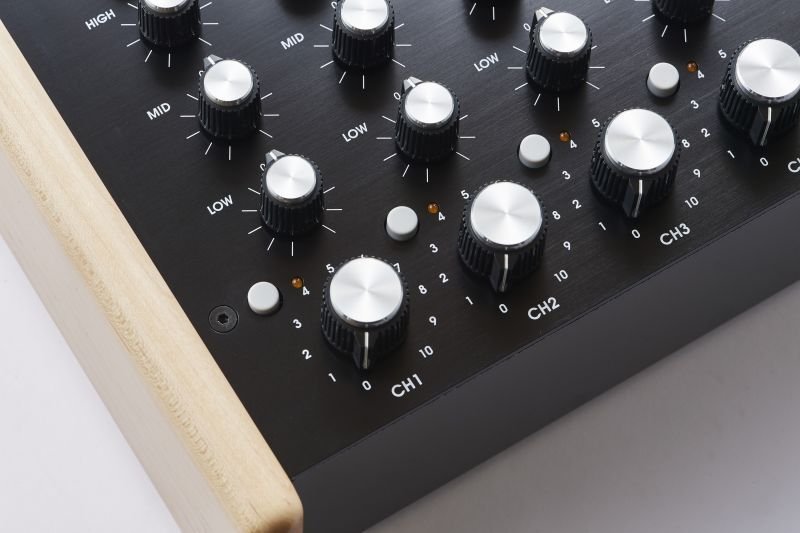

ARS 9100 has 3 band hybrid iso-eq hi-eq mid-eq low-iso on each channel

and 3band Iso on the master.

The Master Isolators can be boost of cut from +18db ~ -∞.

The Ch hi-eq mid-eq can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~ -∞.

Each channel has Post Fader Send. also Return and Effect Loop.

* Due to the Model-9100 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.

* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.


Wood is a natural material, so there may be unevenness in the wood grain. Thank you for your understanding.

[SPEC]
Frequency Response: +-1dB 20Hz-20Khz

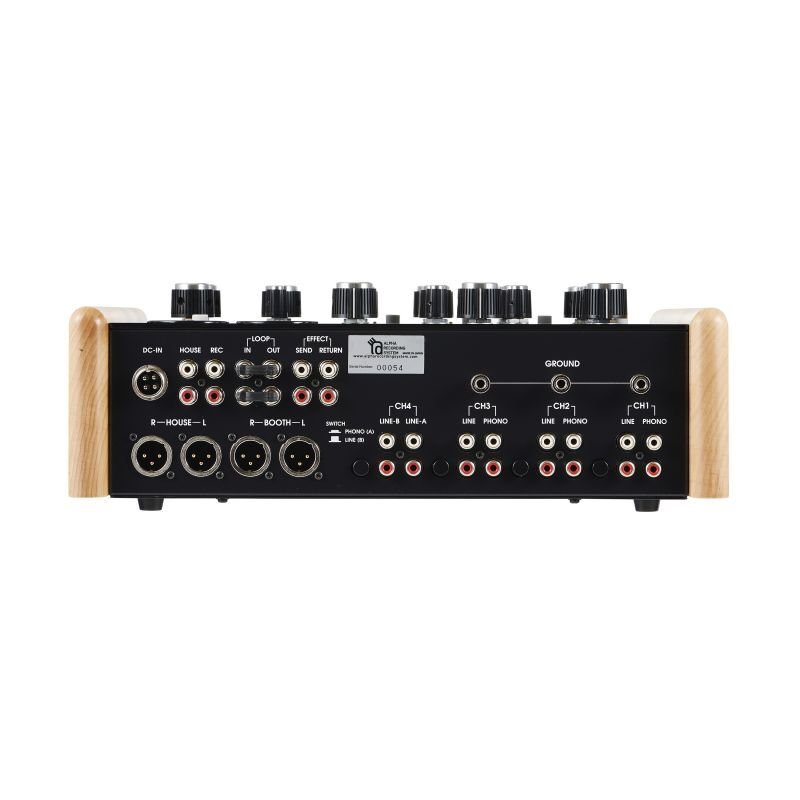

Input: 3 x Phono: 47K Ohm / 5 x Line: 20K Ohm
House Output:RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Booth Output:RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Effect Loop Output: RCA Unbalanced Impedance 600 Ohm
Send Output: RCA Unbalanced Impedance 600 Ohm
Retrun: RCA Unbalanced Impedance 20K Ohm
Isolator Frequency Response:
3band hybrid isoeq 1-4Ch /Low-ISO /MID-EQ/HI-EQ
Master 3Band Iso: 10 – 300 Hz / 300 – 3000 Hz / 3000 – 20000Hz boost of cut from +18db ~ -∞.

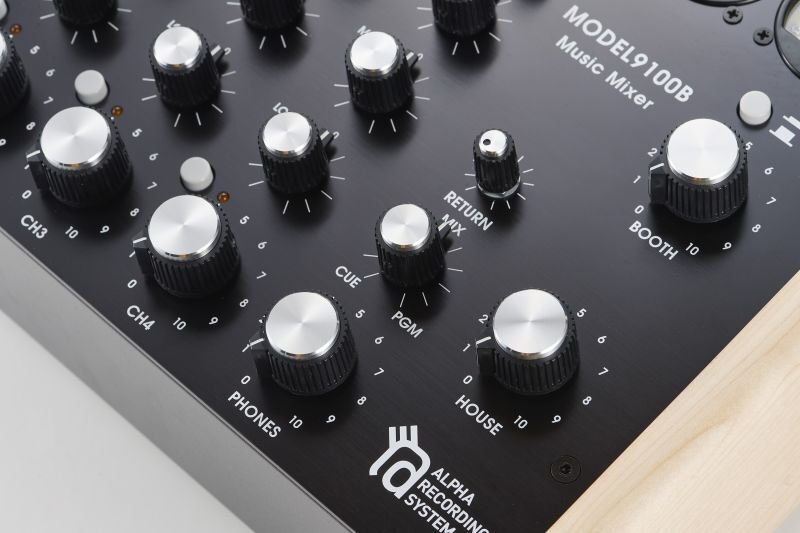

Headphone Monitor Trim: Cue-Mix-Pgm
Power Consumption: 25w
Power Requirement: US-115V/EU-230V(Selectable)
Dimensions: (W)306 x (H)250 x (D)100 mm
model9100BW Unit　weight:4900g
ACBOX:1100g
Front Panel Color: Black
Spec Seat: Manufacturer site
